Bluetooth LED Controller DC12-24V LED strips light box wall light PWM control LED dimmer.
Quick Detail of LED Controller:
- Mobile Bluetooth LED Dimmer
- Working temperature: 20℃-70℃
- Supply voltage: DC12-24V
- Max load current: 30A
- Function: achieve stepless dimming.
- Mainly Application: adjust the brightness of the light which is suitable for within 12V30A and 24V30A power supply of lamps and lanterns.
- Approvals: CE/ROHS
- Unit Size: 8.5*6.2*2.0CM
- Unit Weight: 100g
Description of LED Controller:
This single LED dimmer adopt advanced PWM control technology, used to control a variety of constant voltage LED single lamp, adopt knob to control the dimmer.

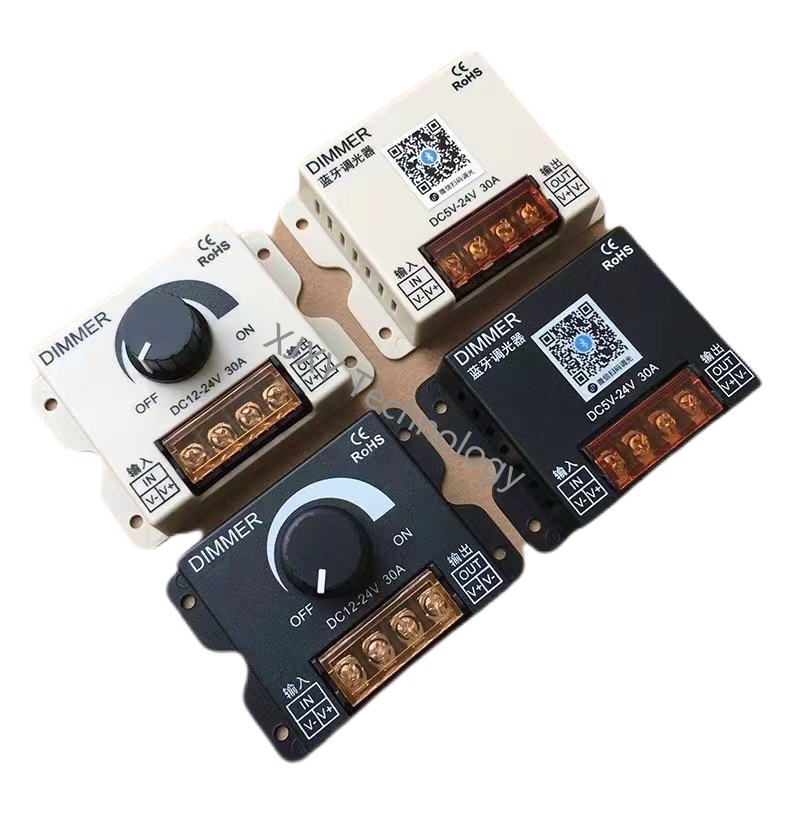

Our LED dimmer have hand operation type, remote control type, Bluetooth type, Rainproof type.
LED dimmers work in three ways
1. Pulse Width Modulation (PWM) digitizes the power square wave and controls the duty cycle of the square wave, so as to achieve the purpose of controlling the current.
2. Constant current power supply control with analog linear technology can easily adjust the current size.
3. Grouping regulation Group multiple leds with a simple grouping device.
Specification of LED Controller:
| Series | Name | LED dimmer |
| 1 | Basic info | DC12-24V |
| 2 | Model | DH-1224-3 |
| 3 | Material | Plastic |
| 4 | Rated input | DC12-24V |
| 5 | Max load current | 30A |
| 6 | Grade | IP20 |
| 7 | Working temperature | 20℃-70℃ |
| 8 | Dimension | 8.5*6.2*2.0CM |
| 9 | Weight | 100g |
Warning:
1. Please confirm the power is correct.
2. Never connect two wires directly in case of short circuit.
3. Please confirm the lead wire is correct.
4. Warranty of this product is one year ,but exclude the artificial situation of damaged or overload working.
DC12-24V LED Controller related models list:
| Model | Input Voltage | Max Load | Feature |
| DH-1224-1 | 12-24V | 30A | Hand operation |
| DR-1224-2 | 12-24V | 30A | Remote control operation |
| DM-1224-3 | 12-24V | 30A | Mobile Bluetooth |
| DW-1224-4 | 12-24V | 30A | Rainproof hand operation |
| DW-R-1224-5 | 12-24V | 30A | Rainproof remote control |
Applications of LED Controller:
DC12-24V LED Dimmer is mainly used in LED strips, LED module, light box, light line, wall light, room light with max 30A.
Non-professionals,please do not install or disassemble,220V prohibited.
1.Before using, check the unit parameter label. Input voltage should be within specified working voltage range (DC12V-24V), and output should
not be short-circuited (220V is prohibited).
2.Strictly prohibited to use at high temperature. The unit should have a good cooling space and environment.
3.Do not install it on inflammable materials such as wood, flammable plastics. The working current should not exceed 30A, otherwise high
temperature may cause fire. Keep away from the oil station and the place where fireworks are prohibited.
FAQ
1. How many kinds of led dimmer you produce?
A: Up to now, there are four kinds of led dimmers: hand operation type, Bluetooth type, remote control type, rainproof type.
2. Can I place a sample order?
A: Yes, sample order is available after full test and before delivery.
3. What about the lead time?
A: 3-5 days for Sample, 8-12 working days for mass production.
4. What is MOQ for led driver?
A: MOQ usually is 500pcs except sample order.
5. How do you ship the goods and how long does it take to arrive?
A: We ship by sea, by railway or by air. If samples, always by express such as FEDEX or DHL etc. It all depends.
